Product Summary

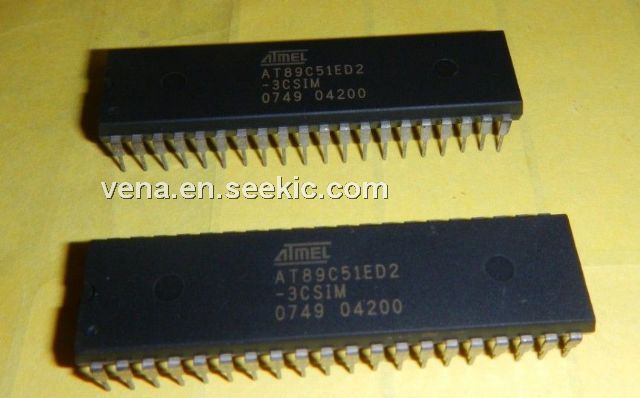

The AT89C51ED2-3CSIM is a high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data. The AT89C51ED2-3CSIM 64-Kbytes Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin. The AT89C51ED2-3CSIM retains all of the features of the Atmel 80C52 with 256 bytes of internal RAM, a 9-source 4-level interrupt controller and three timer/counters. The device provides 2048 bytes of EEPROM for nonvolatile data storage. The AT89C51ED2-3CSIM has a Programmable Counter Array, an XRAM of 1792 bytes, a Hardware Watchdog Timer, SPI interface, Keyboard, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism (X2 Mode).

Parametrics

AT89C51ED2-3CSIM absolute maximum ratings: (1)I = industrial: -40 to 85℃; (2)Storage Temperature: -65 to + 150℃; (3)Voltage on VCC to VSS: -0.5V to + 6.5V; (4)VVoltage on Any Pin to VSS: -0.5V to VCC + 0.5V; (5)Power Dissipation: 1 W.

Features

AT89C51ED2-3CSIM features: (1)8051 Instruction Compatible; (2)Six 8-bit I/O Ports (64 Pins or 68 Pins Versions); (3)Four 8-bit I/O Ports (44 Pins Version); (4)Three 16-bit Timer/Counters; (5)256 Bytes Scratch Pad RAM; (6)9 Interrupt Sources with 4 Priority Levels; (7)Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply; (8)ISP (In-System Programming) Using Standard VCC Power Supply; (9)2048 Bytes Boot ROM Contains Low Level Flash Programming Routines and a Default Serial Loader; (10)On-chip 2048 Bytes EEPROM Block for Data Storage; (11)100K Write Cycles; (12)Dual Data Pointer; (13)Variable Length MOVX for Slow RAM/Peripherals; (14)Improved X2 Mode with Independent Selection for CPU and Each Peripheral; (15)Keyboard Interrupt Interface on Port 1; (16)SPI Interface (Master/Slave Mode); (17)8-bit Clock Prescaler.

Diagrams

if you are interested ,you can press the above far right INQUIRY NOW to inquiry from us ,and ask for the newest price and leave your question ,we will reply you,If this is not you want,any other ICs,Module,LCD,Mosfet,Relay ,all electronic components ,you can also press the above right INQUIRY NOW  button to inquiry from us,please leave your email and phone no,so we can reply you,our information as below ,you can also add my messanger



www.vena-tech.com

Skype: sunnylu8881
email:sunnylu.sep@gmail.com

Mobile:86-13728616604
Tel: 86-755-23614041
Yahoo: sunnylu8881@yahoo.com
Skype: sunnylu8881
MSN: sunnylu.sep@hotmail.com


Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT89C51ED2-3CSIM
AT89C51ED2-3CSIM

Atmel

8-bit Microcontrollers (MCU) 80C31 w/4k

Data Sheet

Negotiable
