Product Summary

CD40106B consists of sic Schmittrigger circuits.Each circuits functions as an inverter with Schmitt-trigger action on the input.

The trigger switches at different points for positive and negative-going signals.The difference between the positive-going

voltage (VP) and the negative-going voltage(VN) is defined as hysteresis voltage (VH).

Features

  1. Schmitt-trigger action with no external components
  2. Hysteresis voltage(typ) 0.9V at VDD=5V,2.3V at VDD=10V,and 3.5V at VDD=15V
  3. Noise immunity greater than 50%
  4. No limit on input rise and fall times
  5. Standardized,symmetrical output characteristics
  6. 100% tested for quiescent current at 20V
  7. Maximum input current of 1μA at 18V over full package-temperature range;100nA at 18V and 25℃
  8. Low VDD to Vss current during slow input ramp
  9. 5V,10V,and 15V parametric ratings

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

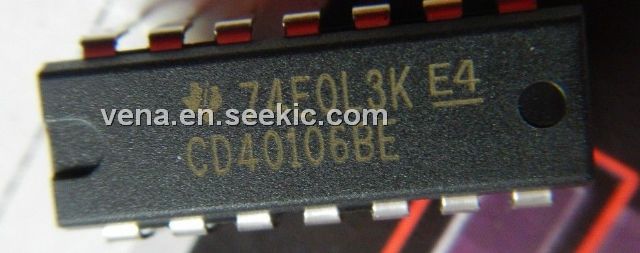

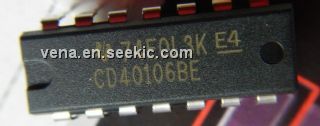

CD40106BE
CD40106BE
Texas Instruments
Inverters Hex Schmitt Trigger
Data Sheet
0-1: $0.25
1-25: $0.21
25-100: $0.16
100-250: $0.14
CD40106BEE4
CD40106BEE4
Texas Instruments
Inverters Hex Schmitt Trigger
Data Sheet
0-1: $0.25
1-25: $0.22
25-100: $0.15
100-250: $0.11
