Product Summary

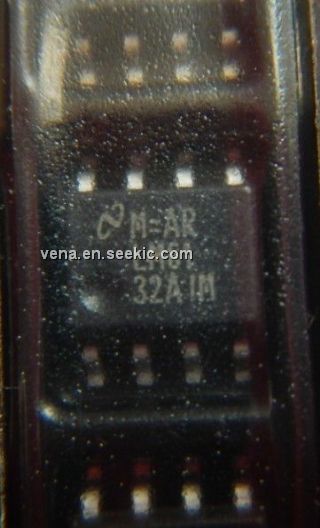

The LM6132AIM is a Low Power 10 MHz Rail-to-Rail I/O Operational Amplifier. It provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of the LM6132AIM supports new portable applications where higher power devices unacceptably drain battery life. The LM6132AIM can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. Operating on supplies from 2.7V to over 24V, the LM6132AIM is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation. The applications of the LM6132AIM are Battery operated instrumentation, Instrumentation Amplifiers, Portable scanners, Wireless communications, Flat panel display driver.
Parametrics
Features
LM6132AIM features: (1)Rail-to-Rail input CMVR -0.25V to 5.25V; (2)Rail-to-Rail output swing 0.01V to 4.99V; (3)High gain-bandwidth, 10 MHz at 20 kHz; (4)Slew rate 12 V/μs; (5)Low supply current 360 μA/Amp; (6)Wide supply range 2.7V to over 24V; (7)CMRR 100 dB; (8)Gain 100 dB with RL = 10k; (9)PSRR 82 dB.
Diagrams
if you are interested ,you can press the above far right INQUIRY NOW to inquiry from us ,and ask for the newest price and leave your question ,we will reply you,If this is not you want,any other ICs,Module,LCD,Mosfet,Relay ,all electronic components ,you can also press the above right INQUIRY NOW button to inquiry from us,please leave your email and phone no,so we can reply you,our information as below ,you can also add my messanger
www.vena-tech.com
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM6132AIM |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LM6132AIM/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps 7Mhz,350Ua Supl.Cur Dual Amp |
Data Sheet |
|
|
||||||||||||
|
LM6132AIMX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM6132AIMX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
