Product Summary

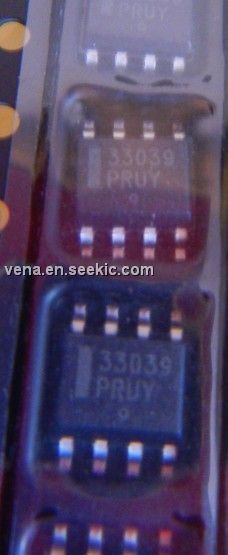

The MC33039 is a high performance closed?loop speed control adapter specifically designed for use in brushless DC motor control systems. Implementation will allow precise speed regulation without the need for a magnetic or optical tachometer. This device contains three input buffers each with hysteresis for noise immunity, three digital edge detectors, a programmable monostable, and an internal shunt regulator. Also included is an inverter output for use in systems that require conversion of sensor phasing. Although this device is primarily intended for use with the MC33035 brushless motor controller, it can be used cost effectively in many other closed?loop speed control applications.
Parametrics
The MC33039 provides an economical method of implementing closed?loop speed control of brushless DC motors by eliminating the need for a magnetic or optical tachometer. Shown in the timing diagram of Figure 1, the three inputs (Pins 1, 2, 3) monitor the brushless motor rotor position sensors. Each sensor signal transition is digitally detected, ORed at the Latch Set Input, and causes CT to discharge. A corresponding output pulse is generated at fout (Pin 5) of a defined amplitude, and programmable width determined by the values selected for RT and CT (Pin 6). The average voltage of the output pulse train increases with motor speed. When fed through a low pass filter or integrator, a DC voltage proportional to speed is generated. Figure 2 shows the proper connections for a typical closed
Features
? Digital Detection of Each Input Transition for Improved Low Speed Motor Operation ? TTL Compatible Inputs With Hysteresis ? Operation Down to 5.5 V for Direct Powering from MC33035 Reference ? Internal Shunt Regulator Allows Operation from a Non?Regulated Voltage Source ? Inverter Output for Easy Conversion between 60°/300° and 120°/240° Sensor Phasing Conventions ? Pb?Free Packages are Available
Diagrams
if you are interested ,you can press the above far right INQUIRY NOW to inquiry from us ,and ask for the newest price and leave your question ,we will reply you,If this is not you want,any other ICs,Module,LCD,Mosfet,Relay ,all electronic components ,you can also press the above right INQUIRY NOW button to inquiry from us,please leave your email and phone no,so we can reply you,our information as below ,you can also add my messanger
www.vena-tech.com
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MC33039D |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed |
Data Sheet |
Negotiable |
|
|||||||||||||
MC33039DG |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed Loop Motor Adaptor |
Data Sheet |
|
|
|||||||||||||
MC33039DR2G |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed Loop Motor Adaptor |
Data Sheet |
|
|
|||||||||||||
MC33039DR2 |
ON Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Brushless Closed |
Data Sheet |
Negotiable |
|
