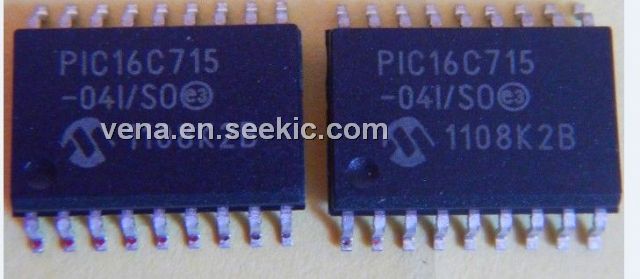

PIC16C715-04I/SO

Product Summary

The PIC16C71X is a family of low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers with
integrated analog-to-digital (A/D) converters, in the
PIC16CXX mid-range family.
All PIC16/17 microcontrollers employ an advanced
RISC architecture.The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack,
and multiple internal and external interrupt sources.
The separate instruction and data buses of the Harvard
architecture allow a 14-bit wide instruction word with
the separate 8-bit wide data. The two stage instruction
pipeline allows all instructions to execute in a single
cycle, except for program branches which require two
cycles. A total of  35 instructions (reduced instruction
set) are available. Additionally, a large register set gives
some of the architectural innovations used to achieve a
very high performance.
PIC16CXX microcontrollers typically achieve a 2:1
code compression and a 4:1 speed improvement over
other 8-bit microcontrollers in their class.
The PIC16C710/71 devices have 36 bytes of RAM, the
PIC16C711 has 68 bytes of RAM and the PIC16C715
has 128 bytes of RAM. Each device has 13 I/O pins. In
addition a timer/counter is available. Also a 4-channel
high-speed 8-bit A/D is provided.The 8-bit resolution is
ideally suited for applications requiring low-cost analog
interface, e.g. thermostat control, pressure sensing,

Parametrics

Features

? High-performance RISC CPU
? Only 35 single word instructions to learn
? All single cycle instructions except for program
branches which are two cycle
? Operating speed: DC - 20 MHz clock input
DC - 200 ns instruction cycle
? Up to 2K x 14 words of Program Memory,
up to 128 x 8 bytes of Data Memory (RAM)
? Interrupt capability
? Eight level deep hardware stack
? Direct, indirect, and relative addressing modes
? Power-on Reset (POR)
? Power-up Timer (PWRT) and
Oscillator Start-up Timer (OST)
? Watchdog Timer (WDT) with its own on-chip RC
oscillator for reliable operation
? Programmable code-protection
? Power saving SLEEP mode
? Selectable oscillator options
? Low-power, high-speed CMOS EPROM
technology
? Fully static design
? Wide operating voltage range:  2.5V to 6.0V
? High Sink/Source Current 25/25 mA
? Commercial, Industrial and Extended temperature
ranges
? Program Memory Parity Error Checking Circuitry
with Parity Error Reset (PER) (PIC16C715)
? Low-power consumption:
- < 2 mA @ 5V, 4 MHz
- 15 μA typical @ 3V, 32 kHz
- < 1 μA typical standby current? Timer0: 8-bit timer/counter with 8-bit prescaler
? 8-bit multichannel analog-to-digital converter
? Brown-out detection circuitry for
Brown-out Reset (BOR)
? 13 I/O Pins with Individual Direction Control
