Product Summary

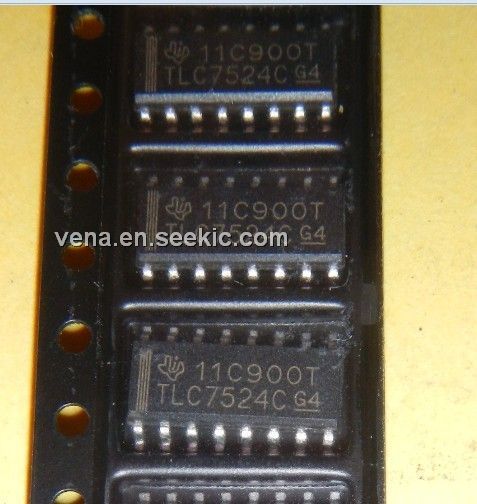

The TLC7524CDR is a coms, 8-bit, digital-to-analog converter (DAC) designed for easy interface to most popular microprocessors. The devices of the TLC7524CDR are 8-bit, multiplying DACs with input latches and load cycles similar to the write cycles of a random access memory. The TLC7524CDR is characterized for operation from 0℃ to 70℃.
Parametrics
TLC7524CDR absolute maximum ratings: (1)Supply voltage range, VDD: 0.3V to 16.5V; (2)Digital input voltage range, VI: 0.3V to VDD + 0.3V; (3)Reference voltage, Vref: ±25V; (4)Peak digital input current, II: 10μA; (5)Operating free-air temperature range, TA: 0℃ to +70℃; (6)Storage temperature range, Tstg: 65℃ to +150℃; (7)Case temperature for 10 seconds, TC: FN package: +260℃; (8)Lead temperature 1,6mm (1/16 inch) from case for 10 seconds: D, N, or PW package: +260℃.
Features
TLC7524CDR features: (1)Easily Interfaced to Microprocessors; (2)On-Chip Data Latches; (3)Monotonic Over the Entire A/D Conversion Range; (4)Segmented High-Order Bits Ensure Low-Glitch Output; (5)Interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524; (6)Fast Control Signaling for Digital Signal-Processor Applications Including Interface With TMS320; (7)CMOS Technology.
Diagrams
if you are interested ,you can press the above far right INQUIRY NOW to inquiry from us ,and ask for the newest price and leave your question ,we will reply you,If this is not you want,any other ICs,Module,LCD,Mosfet,Relay ,all electronic components ,you can also press the above right INQUIRY NOW button to inquiry from us,please leave your email and phone no,so we can reply you,our information as below ,you can also add my messanger
www.vena-tech.com
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC7524CDR |
Texas Instruments |
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input |
Data Sheet |
|
|
||||||||||||
|
TLC7524CDRG4 |
Texas Instruments |
DAC (D/A Converters) 8-Bit 0.1 us MDAC Parallel Input |
Data Sheet |
|
|
||||||||||||
