Product Summary

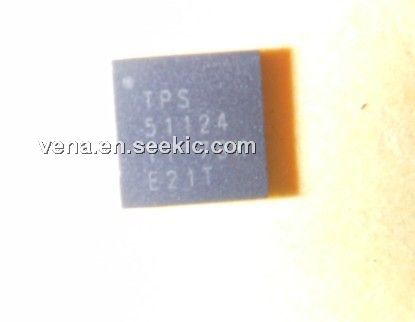

The TPS51124RGER is a dual, adaptive on-time D-CAP mode synchronous buck controller. The TPS51124RGER enables system designers to cost effectively complete the suite of notebook power bus regulators with the absolute lowest external component count and lowest standby consumption. The applications of the TPS51124RGER are Notebook I/O and Low Voltage System Bus. It is available in 24-pin QFN package specified from -40℃ to 85℃ ambient temperature range.
Features
TPS51124RGER features: (1)High Efficiency, Low-Power Consumption, Shutdowns to ＜1 μA; (2)Fixed Frequency Emulated On-Time Control, Frequency Selectable From Three Options; (3)D-CAP Mode Enables Fast Transient Response; (4)Auto-Skip Mode; (5)Less Than 1% Initial Reference Accuracy; (6)Low Output Ripple; (7)Wide Input Voltage Range: 3 V to 28 V; (8)Output Voltage Range: 0.76 V to 5.5 V; (9)Low-Side R DS(ON); (10)Loss-less Current Sensing; (11)Adaptive Gate Drivers With Integrated Boost Diode; (12)Internal 1.2-ms Voltage-Servo Soft Start; (13)Power-Good Signals for Each Channel With Delay Timer; (14)Output Discharge During Disable, Fault.
Diagrams
if you are interested ,you can press the above far right INQUIRY NOW to inquiry from us ,and ask for the newest price and leave your question ,we will reply you,If this is not you want,any other ICs,Module,LCD,Mosfet,Relay ,all electronic components ,you can also press the above right INQUIRY NOW button to inquiry from us,please leave your email and phone no,so we can reply you,our information as below ,you can also add my messanger
www.vena-tech.com
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS51124RGER |
Texas Instruments |
DC/DC Switching Controllers Dual Sync Step Down for Lo-Vltg Sys Pwr |
Data Sheet |
|
|
||||||||||||
|
TPS51124RGERG4 |
Texas Instruments |
DC/DC Switching Controllers Dual Sync Step Down for Lo-Vltg Sys Pwr |
Data Sheet |
|
|
||||||||||||
